Description

Parameters

Technical Specifications	ZUP-48V-10kWh	ZUP-48V-15kWh	ZUP-48V-20kWh
Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Battery Voltage (Vdc)	51.2
Battery Capacity (Wh)	10240	10240 ×2	10240 ×3
Number of Battery Modules	1	2	3
Single Charge Current / Max Charge Current (A)	100/150
Single Discharge Current / Max Discharge Power (A/W)	150A / 7500W	150A / 12000W	150A / 12000W
Charging Temperature (°C)	0~55
Discharging Temperature (°C)	-20~55
Dimensions (W×H×D mm) [Single Unit]	550×495×191 mm
Weight (Single Unit)	46kg

Summary

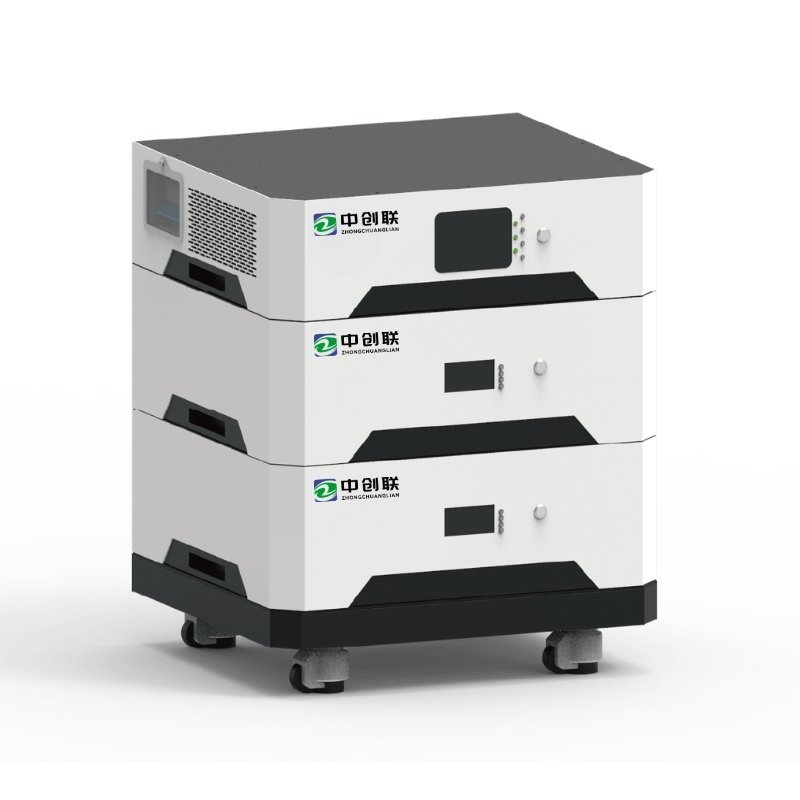

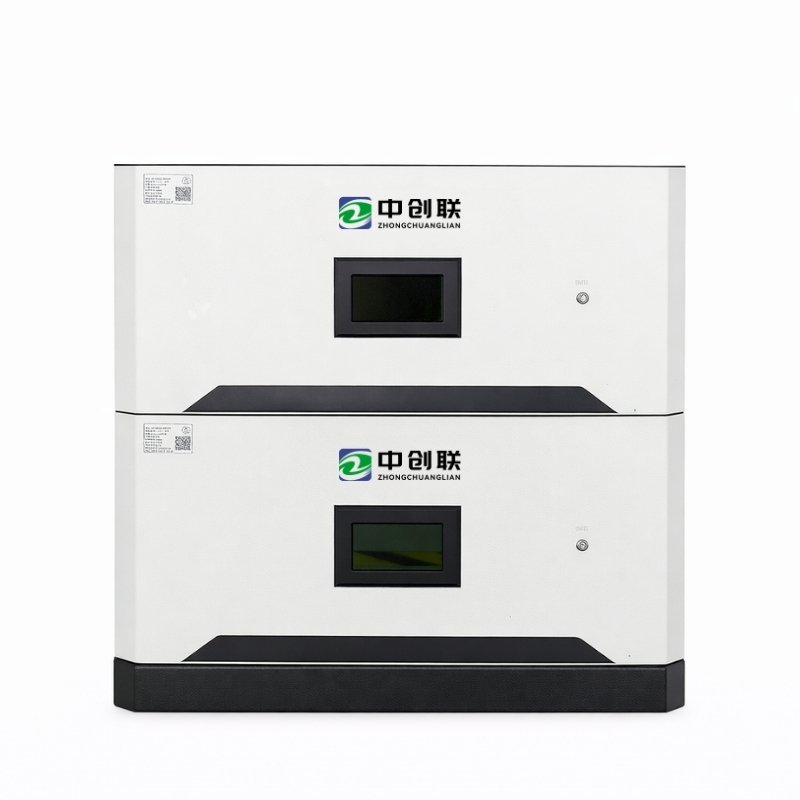

The Stackable Lithium Battery Series is a modular residential energy storage solution designed for scalable home solar systems.

Built with high-performance LiFePO₄ cells and a flexible stacking design, it allows easy capacity expansion from 10kWh to 20kWh. With high discharge capability and integrated smart BMS protection, it delivers reliable backup power and optimized solar self-consumption.

Compact design. Flexible expansion. Powerful performance.

Application

Residential solar energy storage systems

Hybrid inverter systems (48V)

Whole-home backup solutions

Off-grid and weak-grid areas

Villas and large households

Energy storage for time-of-use optimization

Features

Modular Stackable Design

10kWh / 15kWh / 20kWh options

Expandable via modular stacking

Flexible capacity configuration

Easy installation and maintenance

High Power Output

Max discharge current up to 150A

High discharge power up to 12,000W (model dependent)

Stable 51.2V system voltage

Suitable for high-load household appliances

🛡 Intelligent BMS Protection

Overcharge & over-discharge protection

Overcurrent protection

Cell balancing management

Real-time monitoring

Wide Operating Range

Charging temperature: 0–55°C

Discharging temperature: -20–55°C

Designed for indoor residential installation

Compact dimensions for space-saving deployment

Communication & Compatibility

Compatible with mainstream 48V hybrid inverters

Communication interface supported

Flexible system integration

Designed for Modern Homes

Clean and compact appearance

Stackable layout for neat installation

Suitable for garage or indoor wall placement
