Description

Parameters

Inverter PV Input Parameters (DC)
Max PV Input Power	80kW	112kW
Start-up Voltage	195V	195V
Max DC Voltage	1100V	1100V
MPPT Voltage Range	180–800V	180–800V
Max Input Current per MPPT	40A	40A
MPPT Quantity / Strings per MPPT	4/2	4/2
Inverter AC Output
Rated Power	50kW	50kW
Max Apparent Power	55kVA	55kVA
Max AC Current	83.3A	83.3A
Rated AC Voltage Range	400V / 340V–440V	400V / 340V–440V
Grid Frequency / Range	50Hz / 45–55Hz	50Hz / 45–55Hz
THDi	<3% (at rated power)	<3% (at rated power)
Power Factor	0.99 / -1~1	0.99 / -1~1
Battery System
Nominal Battery System Voltage	256Vdc	358.4Vdc
Battery Type	LiFePO4 3.2V / 314Ah	LiFePO4 3.2V / 314Ah
Battery Pack Configuration	1P16S / 16.0768kWh	1P16S / 16.0768kWh
Battery System Configuration	1P80S	1P112S
Rated System Energy	80.384kWh	112.5376kWh
Battery Voltage Range	208–292Vdc	291.2–408.8Vdc
Max Charge/Discharge Current	157A	157A
General Parameters
Dimensions (W×D×H)	725×1187×1985mm (±5mm)	1155×1227×1260mm (±5mm)
Weight	930kg	1264kg
Auxiliary Power	1000W	1000W
Protection Level	IP54	IP54
Surge Protection	DC Type II / AC Type II	DC Type II / AC Type II
Fire Protection System	Aerosol fire extinguishing	Aerosol fire extinguishing
Monitoring
Communication Interface	RS485 / Ethernet	RS485 / Ethernet
Cloud Platform	LD Cloud	LD Cloud
Battery Module Specifications
Configuration	1P16S	1P16S
Rated Capacity	314Ah	314Ah
Rated Energy	16.0768kWh	16.0768kWh
Nominal Voltage	51.2Vdc	51.2Vdc
Charge Cut-off Voltage	58.4Vdc	58.4Vdc
Discharge Cut-off Voltage	41.6Vdc	41.6Vdc
Rated Charge/Discharge Power	7.14kW	7.14kW
Operating Temperature Range	0°C~55°C	0°C~55°C
Recommended Operating Temp.	25±5°C	25±5°C
Storage Temp (SOC50%)	Short-term (≤1 month): -20°C~45°C / Long-term (1 year): 0°C~35°C	Short-term (≤1 month): -20°C~45°C / Long-term (1 year): 0°C~35°C
Storage Humidity	0–85%, no condensation	0–85%, no condensation
Module Weight	≈115kg	≈115kg
External Dimensions	470×840×270mm	470×840×270mm

Summary

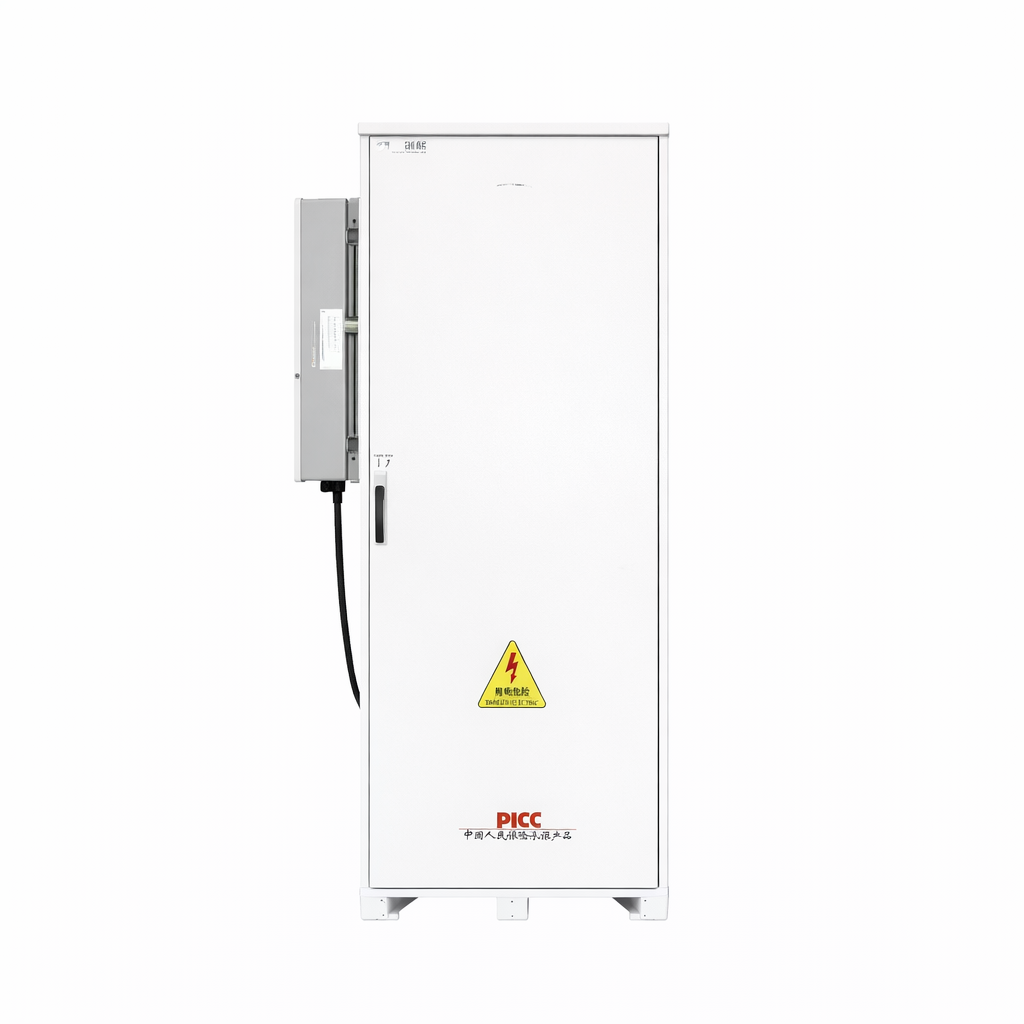

High-voltage all-in-one ESS designed for heavy loads and C&I applications. Delivers superior conversion efficiency and faster response. A sleek, powerful system that combines performance with simplified installation for maximum ROI.

Application

Industrial parks

Manufacturing facilities

Commercial buildings

Shopping malls

Data rooms & telecom sites

Solar + storage retrofit projects

Peak shaving & demand charge reduction

Microgrid and off-grid backup scenarios

Features

High-Voltage LFP Battery System

Safe and stable LiFePO₄ cells

High-voltage architecture (256–358Vdc system)

6000+ cycle life

Modular battery packs (expandable design)

Intelligent BMS management

50kW High-Performance PCS

Rated power: 50kW

Max apparent power: 55kVA

PV input up to 80kW / 112kW

Wide MPPT range: 180–800V

Up to 1100V DC input

Power factor adjustable (0.99 / -1~1)

THDi <3%

Integrated Cabinet Design

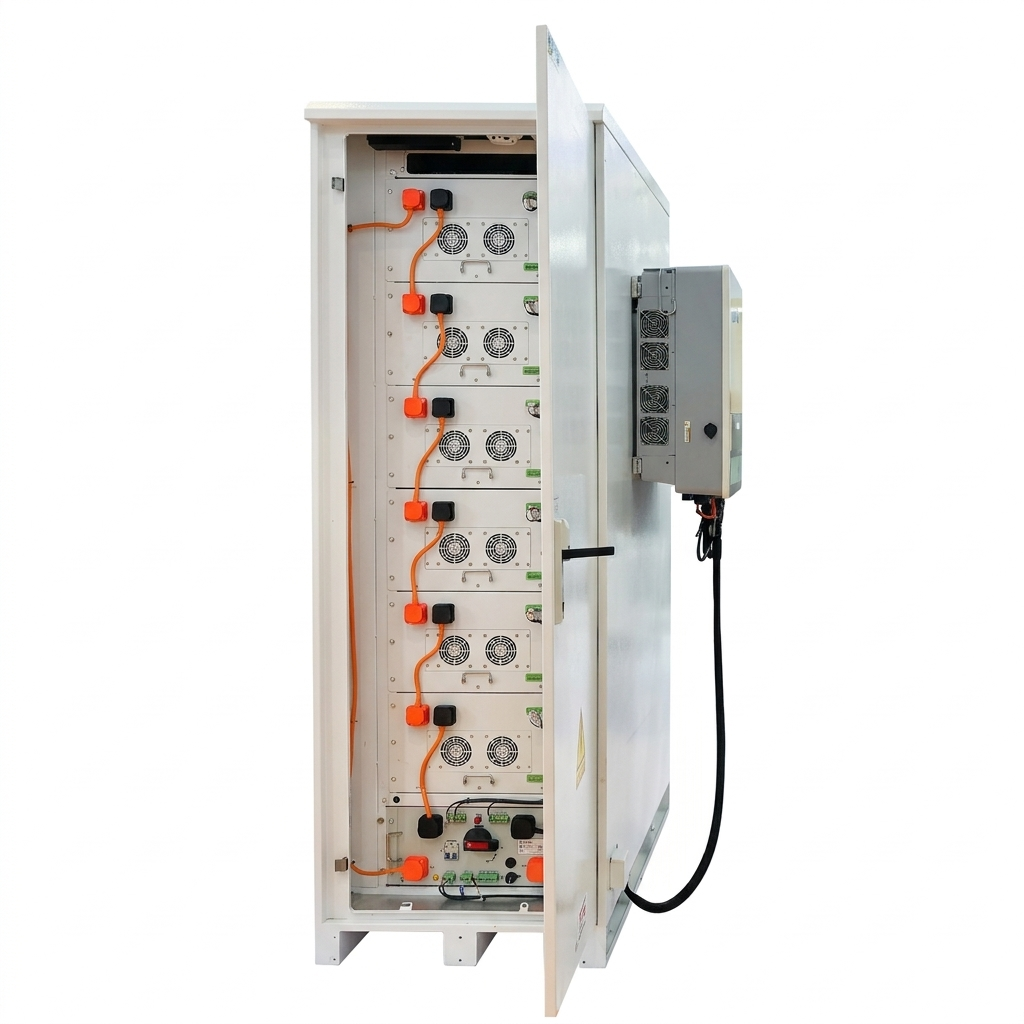

PCS + Battery + EMS in one cabinet

Reduced installation complexity

Compact footprint

Industrial-grade enclosure

🌡 Advanced Thermal Management

Smart air cooling system

Operating temperature: -10°C to 55°C

Designed for long-term stable operation

🛡 Multi-Level Safety Protection

DC Type II / AC Type II surge protection

IP54 protection level

Built-in thermal management

Fire protection system

Electrical isolation & protection

📡 Intelligent Monitoring & EMS

RS485 / Ethernet communication

Cloud monitoring platform (LD Cloud)

Real-time energy management

Supports remote monitoring & maintenance

🔄 Flexible System Expansion

Supports modular battery expansion

System-level integration ready

Suitable for hybrid and microgrid solutions

Maximum system capacity up to 360kWh (depending on configuration)
